class implementing the interface for Renderer objects with the irrlicht graphics engine. More...

Inheritance diagram for CEGUI::IrrlichtRenderer:

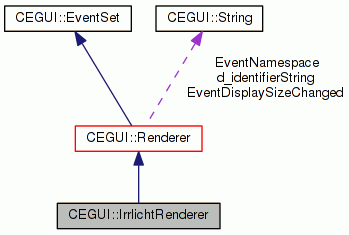

Collaboration diagram for CEGUI::IrrlichtRenderer:

Public Member Functions
	IrrlichtRenderer (irr::IrrlichtDevice *dev, bool bWithIrrlichtResourceProvicer=false)
	create the irrlicht renderer More...

virtual	~IrrlichtRenderer ()

virtual ResourceProvider *	createResourceProvider (void)

bool	OnEvent (const irr::SEvent &event)

virtual void	addQuad (const Rect &dest_rect, float z, const Texture *tex, const Rect &texture_rect, const ColourRect &colours, QuadSplitMode quad_split_mode)
	Add a quad to the rendering queue. All clipping and other adjustments should have been made prior to calling this. More...

virtual void	doRender (void)
	Perform final rendering for all quads that have been queued for rendering. More...

virtual void	clearRenderList (void)
	Clears all queued quads from the render queue. More...

virtual void	setQueueingEnabled (bool setting)
	Enable or disable the queueing of quads from this point on. More...

virtual Texture *	createTexture (void)
	Creates a 'null' Texture object. More...

virtual Texture *	createTexture (const String &filename, const String &resourceGroup)
	Create a Texture object using the given image file. More...

virtual Texture *	createTexture (float size)
	Create a Texture object with the given pixel dimensions as specified by size. NB: Textures are always square. More...

virtual void	destroyTexture (Texture *texture)
	Destroy the given Texture object. More...

virtual void	destroyAllTextures (void)
	Destroy all Texture objects. More...

virtual bool	isQueueingEnabled (void) const
	Return whether queueing is enabled. More...

virtual float	getWidth (void) const
	Return the current width of the display in pixels. More...

virtual float	getHeight (void) const
	Return the current height of the display in pixels. More...

virtual Size	getSize (void) const
	Return the size of the display in pixels. More...

virtual Rect	getRect (void) const
	Return a Rect describing the screen. More...

virtual uint	getMaxTextureSize (void) const
	Return the maximum texture size available. More...

virtual uint	getHorzScreenDPI (void) const
	Return the horizontal display resolution dpi. More...

virtual uint	getVertScreenDPI (void) const
	Return the vertical display resolution dpi. More...

void	setDisplaySize (const Size &sz)
	Set the size of the display in pixels. More...

Public Member Functions inherited from CEGUI::Renderer
void	resetZValue (void)
	Reset the z co-ordinate for rendering. More...

void	advanceZValue (void)
	Update the z co-ordinate for the next major UI element (window). More...

float	getCurrentZ (void) const
	return the current Z value to use (equates to layer 0 for this UI element). More...

float	getZLayer (uint layer) const
	return the z co-ordinate to use for the requested layer on the current GUI element. More...

const String &	getIdentifierString () const
	Return identification string for the renderer module. If the internal id string has not been set by the Renderer module creator, a generic string of "Unknown renderer" will be returned. More...

Public Member Functions inherited from CEGUI::EventSet
	EventSet ()
	Constructor for EventSet objects.

virtual	~EventSet (void)
	Destructor for EventSet objects.

void	addEvent (const String &name)
	Add a new Event to the EventSet with the given name. More...

void	removeEvent (const String &name)
	Removes the Event with the given name. All connections to the event are disconnected. More...

void	removeAllEvents (void)
	Remove all Event objects from the EventSet. More...

bool	isEventPresent (const String &name)
	Checks to see if an Event with the given name is present in the EventSet. More...

virtual Event::Connection	subscribeEvent (const String &name, Event::Subscriber subscriber)
	Subscribes a handler to the named Event. If the named Event is not yet present in the EventSet, it is created and added. More...

virtual Event::Connection	subscribeEvent (const String &name, Event::Group group, Event::Subscriber subscriber)
	Subscribes a handler to the specified group of the named Event. If the named Event is not yet present in the EventSet, it is created and added. More...

virtual Event::Connection	subscribeScriptedEvent (const String &name, const String &subscriber_name)
	Subscribes the named Event to a scripted funtion. More...

virtual Event::Connection	subscribeScriptedEvent (const String &name, Event::Group group, const String &subscriber_name)
	Subscribes the specified group of the named Event to a scripted funtion. More...

virtual void	fireEvent (const String &name, EventArgs &args, const String &eventNamespace="")
	Fires the named event passing the given EventArgs object. More...

bool	isMuted (void) const
	Return whether the EventSet is muted or not. More...

void	setMutedState (bool setting)
	Set the mute state for this EventSet. More...

Iterator	getIterator (void) const
	Return a EventSet::Iterator object to iterate over the events currently added to the EventSet.

Additional Inherited Members
Public Types inherited from CEGUI::EventSet
typedef ConstBaseIterator < EventMap >	Iterator

Static Public Attributes inherited from CEGUI::Renderer
static const String	EventNamespace
	Namespace for global events.

static const String	EventDisplaySizeChanged

Protected Types inherited from CEGUI::EventSet
typedef std::map< String, Event *, String::FastLessCompare >	EventMap

Protected Member Functions inherited from CEGUI::EventSet
Event *	getEventObject (const String &name, bool autoAdd=false)
	Return a pointer to the Event object with the given name, optionally adding such an Event object to the EventSet if it does not already exist. More...

void	fireEvent_impl (const String &name, EventArgs &args)
	Implementation event firing member.

	EventSet (EventSet &e)

EventSet &	operator= (EventSet &e)

Protected Attributes inherited from CEGUI::Renderer
ResourceProvider *	d_resourceProvider
	Holds the pointer to the ResourceProvider object.

String	d_identifierString
	String that holds some id information about the renderer.

Detailed Description

class implementing the interface for Renderer objects with the irrlicht graphics engine.

Constructor & Destructor Documentation

CEGUI::IrrlichtRenderer::IrrlichtRenderer	(	irr::IrrlichtDevice *	dev,
		bool	bWithIrrlichtResourceProvicer = `false`
	)

create the irrlicht renderer

constructor

Parameters

dev	pointer to irr::IrrlichtDevice value specifying the irrlicht device
bWithIrrlichtResourceProvicer	bool specifying wether to use an irrlicht- or defautresourceprovider (default)

References CEGUI::Renderer::d_identifierString, and CEGUI::Renderer::d_resourceProvider.

CEGUI::IrrlichtRenderer::~IrrlichtRenderer ( )

virtual

destructor

Member Function Documentation

void CEGUI::IrrlichtRenderer::addQuad	(	const Rect &	dest_rect,
		float	z,
		const Texture *	tex,
		const Rect &	texture_rect,
		const ColourRect &	colours,
		QuadSplitMode	quad_split_mode
	)

virtual

Add a quad to the rendering queue. All clipping and other adjustments should have been made prior to calling this.

Parameters

dest_rect	Rect object describing the destination area (values are in pixels)
z	float value specifying the z co-ordinate / z order of the quad
tex	pointer to the Texture object that holds the imagery to be rendered
texture_rect	Rect object holding the area of tex that is to be rendered (values are in texture co-ordinates).
colours	ColourRect object describing the colour values that are to be applied when rendering.
quad_split_mode	One of the QuadSplitMode values specifying the way quads are split into triangles

Returns: Nothing

Implements CEGUI::Renderer.

References doRender(), CEGUI::Texture::getHeight(), and CEGUI::Texture::getWidth().

void CEGUI::IrrlichtRenderer::clearRenderList ( void )

virtual

Clears all queued quads from the render queue.

Returns: Nothing

Implements CEGUI::Renderer.

ResourceProvider * CEGUI::IrrlichtRenderer::createResourceProvider ( void )

virtual

get an irrlicht resource provider

Returns: irrlicht resourceprovider

Reimplemented from CEGUI::Renderer.

References CEGUI::Renderer::d_resourceProvider.

Texture * CEGUI::IrrlichtRenderer::createTexture ( void )

virtual

Creates a 'null' Texture object.

Returns: a newly created Texture object. The returned Texture object has no size or imagery associated with it, and is generally of little or no use.

Implements CEGUI::Renderer.

Texture * CEGUI::IrrlichtRenderer::createTexture	(	const String &	filename,
		const String &	resourceGroup
	)

virtual

Create a Texture object using the given image file.

Parameters

filename	String object that specifies the path and filename of the image file to use when creating the texture.
resourceGroup	Resource group identifier passed to the resource provider.

Returns: a newly created Texture object. The initial contents of the texture memory is the requested image file.

Note: Textures are always created with a size that is a power of 2. If the file you specify is of a size that is not a power of two, the final size will be rounded up. Additionally, textures are always square, so the ultimate size is governed by the larger of the width and height of the specified file. You can check the ultimate sizes by querying the texture after creation.

Implements CEGUI::Renderer.

References CEGUI::IrrlichtTexture::loadFromFile().

Texture * CEGUI::IrrlichtRenderer::createTexture ( float size )

virtual

Create a Texture object with the given pixel dimensions as specified by size. NB: Textures are always square.

Parameters

size	float value that specifies the size to use for the width and height when creating the new texture.

Returns: a newly created Texture object. The initial contents of the texture memory is undefined / random.

Note: Textures are always created with a size that is a power of 2. If you specify a size that is not a power of two, the final size will be rounded up. So if you specify a size of 1024, the texture will be (1024 x 1024), however, if you specify a size of 1025, the texture will be (2048 x 2048). You can check the ultimate size by querying the texture after creation.

Implements CEGUI::Renderer.

void CEGUI::IrrlichtRenderer::destroyAllTextures ( void )

virtual

Destroy all Texture objects.

Returns: Nothing

Implements CEGUI::Renderer.

void CEGUI::IrrlichtRenderer::destroyTexture ( Texture * texture )

virtual

Destroy the given Texture object.

Parameters

texture pointer to the Texture object to be destroyed

Returns: Nothing

Implements CEGUI::Renderer.

void CEGUI::IrrlichtRenderer::doRender ( void )

virtual

Perform final rendering for all quads that have been queued for rendering.

The contents of the rendering queue is retained and can be rendered again as required. If the contents is not required call clearRenderList().

Returns: Nothing

Implements CEGUI::Renderer.

Referenced by addQuad().

float CEGUI::IrrlichtRenderer::getHeight ( void ) const

virtual

Return the current height of the display in pixels.

Returns: float value equal to the current height of the display in pixels.

Implements CEGUI::Renderer.

uint CEGUI::IrrlichtRenderer::getHorzScreenDPI ( void ) const

virtual

Return the horizontal display resolution dpi.

Returns: horizontal resolution of the display in dpi.

Implements CEGUI::Renderer.

uint CEGUI::IrrlichtRenderer::getMaxTextureSize ( void ) const

virtual

Return the maximum texture size available.

Returns: Size of the maximum supported texture in pixels (textures are always assumed to be square)

Implements CEGUI::Renderer.

Rect CEGUI::IrrlichtRenderer::getRect ( void ) const

virtual

Return a Rect describing the screen.

Returns: A Rect object that describes the screen area. Typically, the top-left values are always 0, and the size of the area described is equal to the screen resolution.

Implements CEGUI::Renderer.

Size CEGUI::IrrlichtRenderer::getSize ( void ) const

virtual

Return the size of the display in pixels.

Returns: Size object describing the dimensions of the current display.

Implements CEGUI::Renderer.

uint CEGUI::IrrlichtRenderer::getVertScreenDPI ( void ) const

virtual

Return the vertical display resolution dpi.

Returns: vertical resolution of the display in dpi.

Implements CEGUI::Renderer.

float CEGUI::IrrlichtRenderer::getWidth ( void ) const

virtual

Return the current width of the display in pixels.

Returns: float value equal to the current width of the display in pixels.

Implements CEGUI::Renderer.

bool CEGUI::IrrlichtRenderer::isQueueingEnabled ( void ) const

virtual

Return whether queueing is enabled.

Returns: true if queueing is enabled, false if queueing is disabled.

Implements CEGUI::Renderer.

bool CEGUI::IrrlichtRenderer::OnEvent ( const irr::SEvent & event )

forward event to CEGUI system

void CEGUI::IrrlichtRenderer::setDisplaySize ( const Size & sz )

Set the size of the display in pixels.

If your viewport size changes, you can call this function with the new size
in pixels to update the rendering area.

Note: This method will cause the EventDisplaySizeChanged event to fire if the display size has changed.

Parameters

sz	Size object describing the size of the display.

References CEGUI::Renderer::EventDisplaySizeChanged, CEGUI::Renderer::EventNamespace, and CEGUI::EventSet::fireEvent().

void CEGUI::IrrlichtRenderer::setQueueingEnabled ( bool setting )

virtual

Enable or disable the queueing of quads from this point on.

This only affects queueing. If queueing is turned off, any calls to addQuad will cause the quad to be rendered directly. Note that disabling queueing will not cause currently queued quads to be rendered, nor is the queue cleared - at any time the queue can still be drawn by calling doRender, and the list can be cleared by calling clearRenderList. Re-enabling the queue causes subsequent quads to be added as if queueing had never been disabled.

Parameters

setting true to enable queueing, or false to disable queueing (see notes above).

Returns: Nothing

Implements CEGUI::Renderer.

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
