CEGUI::FalagardEditbox Class Reference

Editbox class for the FalagardBase module. More...

Inheritance diagram for CEGUI::FalagardEditbox:

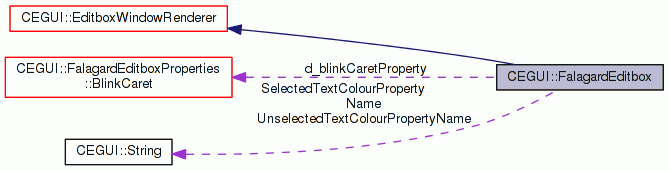

Collaboration diagram for CEGUI::FalagardEditbox:

Public Member Functions
	FalagardEditbox (const String &type)
	Constructor.
colour	getUnselectedTextColour () const
	return the colour to be used for rendering Editbox text oustside of the selected region. More...
colour	getSelectedTextColour () const
	return the colour to be used for rendering Editbox text falling within the selected region. More...
colour	getOptionalPropertyColour (const String &propertyName) const
	Return a colour object fetched from the named property if it exists, else a default colour (black). More...
bool	isCaretBlinkEnabled () const
	return whether the blinking caret is enabled.
float	getCaretBlinkTimeout () const
	return the caret blink timeout period (only used if blink is enabled).
void	setCaretBlinkEnabled (bool enable)
	set whether the blinking caret is enabled.
void	setCaretBlinkTimeout (float seconds)
	set the caret blink timeout period (only used if blink is enabled).
void	render ()
	Populate render cache. More...
size_t	getTextIndexFromPosition (const Point &pt) const
	Return the text code point index that is rendered closest to screen position pt. More...
void	update (float elapsed)
	perform any time based updates for this WindowRenderer.
Public Member Functions inherited from CEGUI::EditboxWindowRenderer
	EditboxWindowRenderer (const String &name)
	Constructor.
Public Member Functions inherited from CEGUI::WindowRenderer
	WindowRenderer (const String &name, const String &class_name="Window")
	Constructor. More...
virtual	~WindowRenderer ()
	Destructor.
const String &	getName () const
	Returns the factory type name of this window renderer.
Window *	getWindow () const
	Get the window this windowrenderer is attached to.
const String &	getClass () const
	Get the "minimum" Window class this renderer requires.
const WidgetLookFeel &	getLookNFeel () const
	Get the Look'N'Feel assigned to our window.
virtual Rect	getUnclippedInnerRect () const
	Get unclipped inner rectangle that our window should return from its member function with the same name.
virtual void	performChildWindowLayout ()
	Method called to perform extended laying out of the window's attached child windows.
virtual void	getRenderingContext (RenderingContext &ctx) const
	update the RenderingContext as needed for our window. This is normally invoked via our window's member function with the same name.

Static Public Attributes
static const utf8	TypeName []
	type name for this widget.
static const String	UnselectedTextColourPropertyName
	Name of property to access for unselected text colour.
static const String	SelectedTextColourPropertyName
	Name of property to access for selected text colour.
static const float	DefaultCaretBlinkTimeout
	The default timeout (in seconds) used when blinking the caret.

Protected Attributes
float	d_lastTextOffset
	x rendering offset used last time we drew the widget.
bool	d_blinkCaret
	true if the caret imagery should blink.
float	d_caretBlinkTimeout
	time-out in seconds used for blinking the caret.
float	d_caretBlinkElapsed
	current time elapsed since last caret blink state change.
bool	d_showCaret
	true if caret should be shown.

Static Protected Attributes
static FalagardEditboxProperties::BlinkCaret	d_blinkCaretProperty
static FalagardEditboxProperties::BlinkCaretTimeout	d_blinkCaretTimeoutProperty

Additional Inherited Members
Protected Types inherited from CEGUI::WindowRenderer
typedef std::vector< Property * >	PropertyList
Protected Member Functions inherited from CEGUI::WindowRenderer
void	registerProperty (Property *property)
	Register a property class that will be properly managed by this window renderer. More...
virtual void	onAttach ()
	Handler called when this windowrenderer is attached to a window.
virtual void	onDetach ()
	Handler called when this windowrenderer is detached from its window.
virtual void	onLookNFeelAssigned ()
	Handler called when a Look'N'Feel is assigned to our window.
virtual void	onLookNFeelUnassigned ()
	Handler called when a Look'N'Feel is removed/unassigned from our window.
void	operator= (const WindowRenderer &)

Detailed Description

Editbox class for the FalagardBase module.

This class requires LookNFeel to be assigned. The LookNFeel should provide the following:

States:

• Enabled: Rendering for when the editbox is in enabled and is in read-write mode.
• ReadOnly: Rendering for when the editbox is in enabled and is in read-only mode.
• Disabled: Rendering for when the editbox is disabled.
• ActiveSelection: additional state rendered for text selection (the imagery in this section is rendered within the selection area.)
• InactiveSelection: additional state rendered for text selection (the imagery in this section is rendered within the selection area.)

NamedAreas:

• TextArea: area where text, selection, and carat imagery will appear.

PropertyDefinitions (optional)

• NormalTextColour: property that accesses a colour value to be used to render normal unselected text. If this property is not defined, the colour defaults to black.
• SelectedTextColour: property that accesses a colour value to be used to render selected text. If this property is not defined, the colour defaults to black.

Imagery Sections:

• Carat

Member Function Documentation

colour CEGUI::FalagardEditbox::getOptionalPropertyColour

(

const String &

propertyName

)

const

Return a colour object fetched from the named property if it exists, else a default colour (black).

Parameters

propertyName

String object holding the name of the property to be accessed if it exists.

colour CEGUI::FalagardEditbox::getSelectedTextColour

(

)

const

return the colour to be used for rendering Editbox text falling within the selected region.

Returns

colour value describing the colour to be used.

size_t CEGUI::FalagardEditbox::getTextIndexFromPosition ( const Point &  pt ) const

virtual

Return the text code point index that is rendered closest to screen position pt.

Parameters

pt	Point object describing a position on the screen in pixels.

Returns

Code point index into the text that is rendered closest to screen position pt.

Implements CEGUI::EditboxWindowRenderer.

colour CEGUI::FalagardEditbox::getUnselectedTextColour

(

)

const

return the colour to be used for rendering Editbox text oustside of the selected region.

Returns

colour value describing the colour to be used.

void CEGUI::FalagardEditbox::render ( )

virtual

Populate render cache.

This method must be implemented by all window renderers and should perform the rendering operations needed for this widget. Normally using the Falagard API...

Implements CEGUI::WindowRenderer.
