CEGUI::ImageryComponent Class Reference

Class that encapsulates information for a single image component. More...

Inheritance diagram for CEGUI::ImageryComponent:

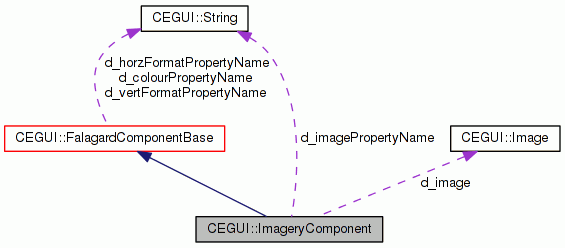

Collaboration diagram for CEGUI::ImageryComponent:

Public Member Functions
	ImageryComponent ()
	Constructor.
const Image *	getImage () const
	Return the Image object that will be drawn by this ImageryComponent. More...
void	setImage (const Image *image)
	Set the Image that will be drawn by this ImageryComponent. More...
void	setImage (const String &imageset, const String &image)
	Set the Image that will be drawn by this ImageryComponent. More...
VerticalFormatting	getVerticalFormatting () const
	Return the current vertical formatting setting for this ImageryComponent. More...
void	setVerticalFormatting (VerticalFormatting fmt)
	Set the vertical formatting setting for this ImageryComponent. More...
HorizontalFormatting	getHorizontalFormatting () const
	Return the current horizontal formatting setting for this ImageryComponent. More...
void	setHorizontalFormatting (HorizontalFormatting fmt)
	Set the horizontal formatting setting for this ImageryComponent. More...
void	writeXMLToStream (XMLSerializer &xml_stream) const
	Writes an xml representation of this ImageryComponent to out_stream. More...
bool	isImageFetchedFromProperty () const
	Return whether this ImageryComponent fetches it's image via a property on the target window. More...
const String &	getImagePropertySource () const
	Return the name of the property that will be used to determine the image for this ImageryComponent. More...
void	setImagePropertySource (const String &property)
	Set the name of the property that will be used to determine the image for this ImageryComponent. More...
Public Member Functions inherited from CEGUI::FalagardComponentBase
	FalagardComponentBase ()
	Constructor.
virtual	~FalagardComponentBase ()
	Destructor.
void	render (Window &srcWindow, const CEGUI::ColourRect *modColours=0, const Rect *clipper=0, bool clipToDisplay=false) const
	Render this component. More correctly, the component is cached for rendering. More...
void	render (Window &srcWindow, const Rect &baseRect, const CEGUI::ColourRect *modColours=0, const Rect *clipper=0, bool clipToDisplay=false) const
	Render this component. More correctly, the component is cached for rendering. More...
const ComponentArea &	getComponentArea () const
	Return the ComponentArea of this ImageryComponent. More...
void	setComponentArea (const ComponentArea &area)
	Set the ImageryComponent's ComponentArea. More...
const ColourRect &	getColours () const
	Return the ColourRect set for use by this ImageryComponent. More...
void	setColours (const ColourRect &cols)
	Set the colours to be used by this ImageryComponent. More...
void	setColoursPropertySource (const String &property)
	Set the name of the property where colour values can be obtained. More...
void	setColoursPropertyIsColourRect (bool setting=true)
	Set whether the colours property source represents a full ColourRect. More...
void	setVertFormattingPropertySource (const String &property)
	Set the name of the property where vertical formatting option can be obtained. More...
void	setHorzFormattingPropertySource (const String &property)
	Set the name of the property where horizontal formatting option can be obtained. More...

Protected Member Functions
void	render_impl (Window &srcWindow, Rect &destRect, const CEGUI::ColourRect *modColours, const Rect *clipper, bool clipToDisplay) const
	Method to do main render caching work.
Protected Member Functions inherited from CEGUI::FalagardComponentBase
void	initColoursRect (const Window &wnd, const ColourRect *modCols, ColourRect &cr) const
	Helper method to initialise a ColourRect with appropriate values according to the way the ImageryComponent is set up. More...
bool	writeColoursXML (XMLSerializer &xml_stream) const
	Writes xml for the colours to a OutStream. Will prefer property colours before explicit. More...
bool	writeVertFormatXML (XMLSerializer &xml_stream) const
	Writes xml for the vertical formatting to a OutStream if such a property is defined. More...
bool	writeHorzFormatXML (XMLSerializer &xml_stream) const
	Writes xml for the horizontal formatting to a OutStream if such a property is defined. More...

Protected Attributes
const Image *	d_image
	CEGUI::Image to be drawn by this image component.
VerticalFormatting	d_vertFormatting
	Vertical formatting to be applied when rendering the image component.
HorizontalFormatting	d_horzFormatting
	Horizontal formatting to be applied when rendering the image component.
String	d_imagePropertyName
	Name of the property to access to obtain the image to be used.
Protected Attributes inherited from CEGUI::FalagardComponentBase
ComponentArea	d_area
	Destination area for this component.
ColourRect	d_colours
	base colours to be applied when rendering the image component.
String	d_colourPropertyName
	name of property to fetch colours from.
bool	d_colourProperyIsRect
	true if the colour property will fetch a full ColourRect.
String	d_vertFormatPropertyName
	name of property to fetch vertical formatting setting from.
String	d_horzFormatPropertyName
	name of property to fetch horizontal formatting setting from.

Detailed Description

Class that encapsulates information for a single image component.

Member Function Documentation

HorizontalFormatting CEGUI::ImageryComponent::getHorizontalFormatting

(

)

const

Return the current horizontal formatting setting for this ImageryComponent.

Returns

One of the HorizontalFormatting enumerated values.

const Image* CEGUI::ImageryComponent::getImage

(

)

const

Return the Image object that will be drawn by this ImageryComponent.

Returns

Image object.

const String& CEGUI::ImageryComponent::getImagePropertySource

(

)

const

Return the name of the property that will be used to determine the image for this ImageryComponent.

Returns

String object holding the name of a Propery.

VerticalFormatting CEGUI::ImageryComponent::getVerticalFormatting

(

)

const

Return the current vertical formatting setting for this ImageryComponent.

Returns

One of the VerticalFormatting enumerated values.

bool CEGUI::ImageryComponent::isImageFetchedFromProperty

(

)

const

Return whether this ImageryComponent fetches it's image via a property on the target window.

Returns

• true if the image comes via a Propery.
• false if the image is defined explicitly.

void CEGUI::ImageryComponent::setHorizontalFormatting

(

HorizontalFormatting

fmt

)

Set the horizontal formatting setting for this ImageryComponent.

Parameters

fmt	One of the HorizontalFormatting enumerated values.

Returns

Nothing.

void CEGUI::ImageryComponent::setImage

(

const Image *


)

Set the Image that will be drawn by this ImageryComponent.

Parameters

Pointer

to the Image object to be drawn by this ImageryComponent.

Returns

Nothing.

void CEGUI::ImageryComponent::setImage	(	const String &	imageset,
		const String &	image
	)

Set the Image that will be drawn by this ImageryComponent.

Parameters

imageset	String holding the name of the Imagset that contains the Image to be rendered.
image	String holding the name of the Image to be rendered.

Returns

Nothing.

void CEGUI::ImageryComponent::setImagePropertySource

(

const String &

property

)

Set the name of the property that will be used to determine the image for this ImageryComponent.

Parameters

property

String object holding the name of a Propery. The property should access a imageset & image specification.

Returns

Nothing.

void CEGUI::ImageryComponent::setVerticalFormatting

(

VerticalFormatting

fmt

)

Set the vertical formatting setting for this ImageryComponent.

Parameters

fmt	One of the VerticalFormatting enumerated values.

Returns

Nothing.

void CEGUI::ImageryComponent::writeXMLToStream

(

XMLSerializer &

xml_stream

)

const

Writes an xml representation of this ImageryComponent to out_stream.

Parameters

xml_stream

Stream where xml data should be output.

Returns

Nothing.
