CEGUI::RenderedStringImageComponent Class Reference

String component that draws an image. More...

Inheritance diagram for CEGUI::RenderedStringImageComponent:

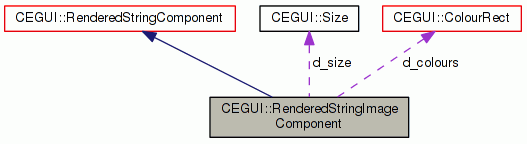

Collaboration diagram for CEGUI::RenderedStringImageComponent:

Public Member Functions
	RenderedStringImageComponent ()
	Constructor.
	RenderedStringImageComponent (const String &imageset, const String &image)
	RenderedStringImageComponent (const Image *image)
void	setImage (const String &imageset, const String &image)
	Set the image to be drawn by this component.
void	setImage (const Image *image)
	Set the image to be drawn by this component.
const Image *	getImage () const
	return the current set image that will be drawn by this component
void	setColours (const ColourRect &cr)
	Set the colour values used when rendering this component.
void	setColours (const colour &c)
	Set the colour values used when rendering this component.
const ColourRect &	getColours () const
	return the ColourRect object used when drawing this component.
void	setSize (const Size &sz)
	set the size for rendering the image (0s mean 'normal' size)
const Size &	getSize () const
	return the size for rendering the image (0s mean 'normal' size)
void	draw (GeometryBuffer &buffer, const Vector2 &position, const ColourRect *mod_colours, const Rect *clip_rect, const float vertical_space, const float space_extra) const
	draw the component.
Size	getPixelSize () const
	return the pixel size of the rendered component.
bool	canSplit () const
	return whether the component can be split
RenderedStringImageComponent *	split (float split_point, bool first_component)
	split the component as close to split_point as possible, returning a new RenderedStringComponent of the same type as '*this' holding the left side of the split, and leaving the right side of the split in this object. More...
RenderedStringImageComponent *	clone () const
	clone this component.
size_t	getSpaceCount () const
	return the total number of spacing characters in the string.
Public Member Functions inherited from CEGUI::RenderedStringComponent
virtual	~RenderedStringComponent ()
	Destructor.
void	setVerticalFormatting (VerticalFormatting fmt)
	Set the VerticalFormatting option for this component.
VerticalFormatting	getVerticalFormatting () const
	return the current VerticalFormatting option.
void	setPadding (const Rect &padding)
	set the padding values.
void	setLeftPadding (const float padding)
	set the left padding value.
void	setRightPadding (const float padding)
	set the right padding value.
void	setTopPadding (const float padding)
	set the top padding value.
void	setBottomPadding (const float padding)
	set the Bottom padding value.
const Rect &	getPadding () const
	return the current padding value Rect.
float	getLeftPadding () const
	return the left padding value.
float	getRightPadding () const
	return the right padding value.
float	getTopPadding () const
	return the top padding value.
float	getBottomPadding () const
	return the bottom padding value.
void	setAspectLock (const bool setting)
	set the aspect-lock state
bool	getAspectLock () const
	return the aspect-lock state

Protected Attributes
const Image *	d_image
	pointer to the image drawn by the component.
ColourRect	d_colours
	ColourRect object describing the colours to use when rendering.
Size	d_size
	target size to render the image at (0s mean natural size)
Protected Attributes inherited from CEGUI::RenderedStringComponent
Rect	d_padding
	Rect object holding the padding values for this component.
VerticalFormatting	d_verticalFormatting
	Vertical formatting to be used for this component.
bool	d_aspectLock
	true if the aspect ratio should be maintained where possible.

Additional Inherited Members
Protected Member Functions inherited from CEGUI::RenderedStringComponent
	RenderedStringComponent ()
	Protected constructor.

Detailed Description

String component that draws an image.

Member Function Documentation

RenderedStringImageComponent* CEGUI::RenderedStringImageComponent::split ( float  split_point, bool  first_component  )

virtual

split the component as close to split_point as possible, returning a new RenderedStringComponent of the same type as '*this' holding the left side of the split, and leaving the right side of the split in this object.

Exceptions

InvalidRequestException

thrown if the RenderedStringComponent does not support being split.

Implements CEGUI::RenderedStringComponent.
