Crazy Eddie's GUI System  0.8.5
CEGUI::BasicRenderedStringParser Class Reference

Basic RenderedStringParser class that offers support for the following tags: More...

+ Inheritance diagram for CEGUI::BasicRenderedStringParser:

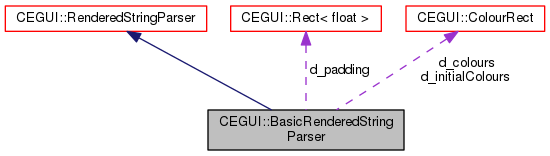

+ Collaboration diagram for CEGUI::BasicRenderedStringParser:

Public Member Functions

 BasicRenderedStringParser ()
 Constructor.

 BasicRenderedStringParser (const String &initial_font, const ColourRect &initial_colours)
 Initialising constructor. More...

virtual ~BasicRenderedStringParser ()
 Destructor.

void setInitialFontName (const String &font_name)
 set the initial font name to be used on subsequent calls to parse. More...

void setInitialColours (const ColourRect &colours)
 Set the initial colours to be used on subsequent calls to parse. More...

const StringgetInitialFontName () const
 Return the name of the initial font used in each parse. More...

const ColourRectgetInitialColours () const
 Return a ColourRect describing the initial colours used in each parse. More...

RenderedString parse (const String &input_string, const Font *active_font, const ColourRect *active_colours)
 parse a text string and return a RenderedString representation. More...


Static Public Attributes

static const String ColourTagName

static const String FontTagName

static const String ImageTagName

static const String WindowTagName

static const String VertAlignmentTagName

static const String PaddingTagName

static const String TopPaddingTagName

static const String BottomPaddingTagName

static const String LeftPaddingTagName

static const String RightPaddingTagName

static const String AspectLockTagName

static const String ImageSizeTagName

static const String ImageWidthTagName

static const String ImageHeightTagName

static const String TopAlignedValueName

static const String BottomAlignedValueName

static const String CentreAlignedValueName

static const String StretchAlignedValueName


Protected Types

typedef void(BasicRenderedStringParser::* TagHandler) (RenderedString &, const String &)
 definition of type used for handler functions

typedef std::map< String, TagHandler, StringFastLessCompareTagHandlerMap
 definition of type used to despatch tag handler functions


Protected Member Functions

virtual void appendRenderedText (RenderedString &rs, const String &text) const
 append the text string text to the RenderedString rs.

virtual void processControlString (RenderedString &rs, const String &ctrl_str)
 Process the control string ctrl_str.

virtual void initialiseDefaultState ()
 initialise the default state

void initialiseTagHandlers ()
 initialise tag handlers

void handleColour (RenderedString &rs, const String &value)
 handlers for the various tags supported

void handleFont (RenderedString &rs, const String &value)

void handleImage (RenderedString &rs, const String &value)

void handleWindow (RenderedString &rs, const String &value)

void handleVertAlignment (RenderedString &rs, const String &value)

void handlePadding (RenderedString &rs, const String &value)

void handleTopPadding (RenderedString &rs, const String &value)

void handleBottomPadding (RenderedString &rs, const String &value)

void handleLeftPadding (RenderedString &rs, const String &value)

void handleRightPadding (RenderedString &rs, const String &value)

void handleAspectLock (RenderedString &rs, const String &value)

void handleImageSize (RenderedString &rs, const String &value)

void handleImageWidth (RenderedString &rs, const String &value)

void handleImageHeight (RenderedString &rs, const String &value)


Protected Attributes

String d_initialFontName

ColourRect d_initialColours

Rectf d_padding
 active padding values.

ColourRect d_colours
 active colour values.

String d_fontName
 active font.

VerticalFormatting d_vertAlignment
 active vertical alignment

Sizef d_imageSize
 active image size

bool d_aspectLock
 active 'aspect lock' state

bool d_initialised
 true if handlers have been registered

TagHandlerMap d_tagHandlers
 Collection to map tag names to their handler functions.


Detailed Description

Basic RenderedStringParser class that offers support for the following tags:

  • 'colour' value is a CEGUI colour property value.
  • 'font' value is the name of a font.
  • 'image' value is a CEGUI image property value.
  • 'window' value is the name of a window.
  • 'vert-alignment' value is either top, bottom, centre or stretch.
  • 'padding' value is a CEGUI Rect property value.
  • 'top-padding' value is a float.
  • 'bottom-padding' value is a float.
  • 'left-padding' value is a float.
  • 'right-padding' value is a float.
  • 'image-size' value is a CEGUI size property value.
  • 'image-width' value is a float.
  • 'image-height' value is a float.
  • 'aspect-lock' value is a boolean (NB: this currently has no effect).

Constructor & Destructor Documentation

CEGUI::BasicRenderedStringParser::BasicRenderedStringParser ( const String initial_font,
const ColourRect initial_colours
)

Initialising constructor.

Parameters
initial_fontReference to a String holding the name of the initial font to be used.
initial_coloursReference to a ColourRect describing the initial colours to be used.
Deprecated:
This constructor is deprecated and will be removed in the next major version */

Member Function Documentation

const ColourRect& CEGUI::BasicRenderedStringParser::getInitialColours ( ) const

Return a ColourRect describing the initial colours used in each parse.

Deprecated:
This function is deprecated and will be removed in the next major version */
const String& CEGUI::BasicRenderedStringParser::getInitialFontName ( ) const

Return the name of the initial font used in each parse.

Deprecated:
This function is deprecated and will be removed in the next major version */
RenderedString CEGUI::BasicRenderedStringParser::parse ( const String input_string,
const Font initial_font,
const ColourRect initial_colours
)
virtual

parse a text string and return a RenderedString representation.

Parameters
input_stringString object holding the text that is to be parsed.
initial_fontPointer to the initial font to be used for text (0 for system default).
initial_coloursPointer to the initial colours to be used (0 for default).
Returns
RenderedString object holding the result of the parse operation.

Implements CEGUI::RenderedStringParser.

void CEGUI::BasicRenderedStringParser::setInitialColours ( const ColourRect colours)

Set the initial colours to be used on subsequent calls to parse.

Parameters
coloursColourRect object holding the colours.
Deprecated:
This function is deprecated and will be removed in the next major version */
void CEGUI::BasicRenderedStringParser::setInitialFontName ( const String font_name)

set the initial font name to be used on subsequent calls to parse.

Parameters
font_nameString object holding the name of the font.
Deprecated:
This function is deprecated and will be removed in the next major version */

Member Data Documentation

ColourRect CEGUI::BasicRenderedStringParser::d_initialColours
protected
Deprecated:
This variable is deprecated and will removed in the next major version */
String CEGUI::BasicRenderedStringParser::d_initialFontName
protected
Deprecated:
This variable is deprecated and will removed in the next major version */
