CEGUI::FalagardScrollbar Class Reference

Scrollbar class for the FalagardBase module. More...

Inheritance diagram for CEGUI::FalagardScrollbar:

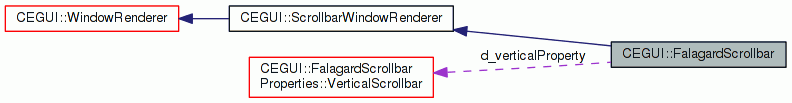

Collaboration diagram for CEGUI::FalagardScrollbar:

Public Member Functions
	FalagardScrollbar (const String &type)
	type name for this widget. More...
bool	isVertical () const
void	setVertical (bool setting)
void	render ()
	Populate render cache. More...
void	performChildWindowLayout ()
	Method called to perform extended laying out of the window's attached child windows.
Public Member Functions inherited from CEGUI::ScrollbarWindowRenderer
	ScrollbarWindowRenderer (const String &name)
	Constructor.
Public Member Functions inherited from CEGUI::WindowRenderer
	WindowRenderer (const String &name, const String &class_name="Window")
	Constructor. More...
virtual	~WindowRenderer ()
	Destructor.
const String &	getName () const
	Returns the factory type name of this window renderer.
Window *	getWindow () const
	Get the window this windowrenderer is attached to.
const String &	getClass () const
	Get the "minimum" Window class this renderer requires.
const WidgetLookFeel &	getLookNFeel () const
	Get the Look'N'Feel assigned to our window.
virtual Rect	getUnclippedInnerRect () const
	Get unclipped inner rectangle that our window should return from its member function with the same name.
virtual Rect	getPixelRect () const
	Get actual pixel rectangle our window is to return from its member function with the same name.

Static Public Attributes
static const utf8	TypeName [] = "Falagard/Scrollbar"

Protected Member Functions
void	updateThumb (void)
	update the size and location of the thumb to properly represent the current state of the scroll bar
float	getValueFromThumb (void) const
	return value that best represents current scroll bar position given the current location of the thumb. More...
float	getAdjustDirectionFromPoint (const Point &pt) const
	Given window location pt, return a value indicating what change should be made to the scroll bar. More...

Protected Attributes
bool	d_vertical
	True if slider operates in vertical direction.

Static Protected Attributes
static FalagardScrollbarProperties::VerticalScrollbar	d_verticalProperty

Additional Inherited Members
Protected Types inherited from CEGUI::WindowRenderer
typedef std::vector< Property * >	PropertyList

Detailed Description

Scrollbar class for the FalagardBase module.

This class requires LookNFeel to be assigned. The LookNFeel should provide the following:

States:

• Enabled
• Disabled

Named Areas:

• ThumbTrackArea

Child Widgets: Thumb based widget with name suffix "__auto_thumb__" PushButton based widget with name suffix "__auto_incbtn__" PushButton based widget with name suffix "__auto_decbtn__"

Property initialiser definitions:

• VerticalScrollbar - boolean property. Indicates whether this scrollbar will operate in the vertical or horizontal direction. Default is for horizontal. Optional.

Constructor & Destructor Documentation

CEGUI::FalagardScrollbar::FalagardScrollbar

(

const String &

type

)

type name for this widget.

Constructor

References CEGUI::WindowRenderer::registerProperty().

Member Function Documentation

float CEGUI::FalagardScrollbar::getAdjustDirectionFromPoint ( const Point &  pt ) const

protectedvirtual

Given window location pt, return a value indicating what change should be made to the scroll bar.

Parameters

pt	Point object describing a pixel position in window space.

Returns

• -1 to indicate scroll bar position should be moved to a lower value.
• 0 to indicate scroll bar position should not be changed.
• +1 to indicate scroll bar position should be moved to a higher value.

Implements CEGUI::ScrollbarWindowRenderer.

References d_vertical, CEGUI::WindowRenderer::d_window, CEGUI::Scrollbar::getThumb(), and CEGUI::Window::getUnclippedPixelRect().

float CEGUI::FalagardScrollbar::getValueFromThumb ( void  ) const

protectedvirtual

return value that best represents current scroll bar position given the current location of the thumb.

Returns

float value that, given the thumb widget position, best represents the current position for the scroll bar.

Implements CEGUI::ScrollbarWindowRenderer.

References d_vertical, CEGUI::WindowRenderer::d_window, CEGUI::NamedArea::getArea(), CEGUI::Scrollbar::getDocumentSize(), CEGUI::WindowRenderer::getLookNFeel(), CEGUI::WidgetLookFeel::getNamedArea(), CEGUI::Scrollbar::getPageSize(), CEGUI::ComponentArea::getPixelRect(), CEGUI::Window::getPixelSize(), and CEGUI::Scrollbar::getThumb().

void CEGUI::FalagardScrollbar::render ( )

virtual

Populate render cache.

This method must be implemented by all window renderers and should perform the rendering operations needed for this widget. Normally using the Falagard API...

Implements CEGUI::WindowRenderer.

References CEGUI::WindowRenderer::d_window, CEGUI::WindowRenderer::getLookNFeel(), CEGUI::WidgetLookFeel::getStateImagery(), CEGUI::Window::isDisabled(), and CEGUI::StateImagery::render().
