CEGUI::WindowRenderer Class Reference

Base-class for the assignable WindowRenderer object. More...

Inherited by CEGUI::EditboxWindowRenderer, CEGUI::FalagardButton, CEGUI::FalagardDefault, CEGUI::FalagardFrameWindow, CEGUI::FalagardListHeaderSegment, CEGUI::FalagardProgressBar, CEGUI::FalagardStatic, CEGUI::FalagardTabButton, CEGUI::FalagardTitlebar, CEGUI::FalagardTree, CEGUI::ItemEntryWindowRenderer, CEGUI::ItemListBaseWindowRenderer, CEGUI::ListboxWindowRenderer, CEGUI::ListHeaderWindowRenderer, CEGUI::MultiColumnListWindowRenderer, CEGUI::MultiLineEditboxWindowRenderer, CEGUI::ScrollablePaneWindowRenderer, CEGUI::ScrollbarWindowRenderer, CEGUI::SliderWindowRenderer, CEGUI::TabControlWindowRenderer, and CEGUI::TooltipWindowRenderer.

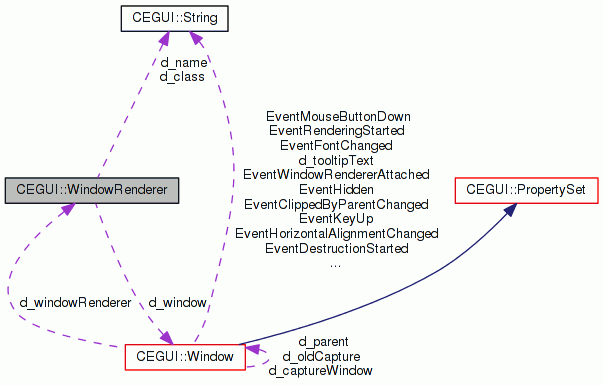

Collaboration diagram for CEGUI::WindowRenderer:

Public Member Functions
	WindowRenderer (const String &name, const String &class_name="Window")
	Constructor. More...
virtual	~WindowRenderer ()
	Destructor.
virtual void	render ()=0
	Populate render cache. More...
const String &	getName () const
	Returns the factory type name of this window renderer.
Window *	getWindow () const
	Get the window this windowrenderer is attached to.
const String &	getClass () const
	Get the "minimum" Window class this renderer requires.
const WidgetLookFeel &	getLookNFeel () const
	Get the Look'N'Feel assigned to our window.
virtual Rect	getUnclippedInnerRect () const
	Get unclipped inner rectangle that our window should return from its member function with the same name.
virtual Rect	getPixelRect () const
	Get actual pixel rectangle our window is to return from its member function with the same name.
virtual void	performChildWindowLayout ()
	Method called to perform extended laying out of the window's attached child windows.

Protected Types
typedef std::vector< Property * >	PropertyList

Protected Member Functions
void	registerProperty (Property *property)
	Register a property class that will be properly managed by this window renderer. More...
virtual void	onAttach ()
	Handler called when this windowrenderer is attached to a window.
virtual void	onDetach ()
	Handler called when this windowrenderer is detached from its window.
virtual void	onLookNFeelAssigned ()
	Handler called when a Look'N'Feel is assigned to our window.
virtual void	onLookNFeelUnassigned ()
	Handler called when a Look'N'Feel is removed/unassigned from our window.

Protected Attributes
Window *	d_window
	Pointer to the window this windowrenderer is assigned to.
const String	d_name
	Name of the factory type used to create this window renderer.
const String	d_class
	Name of the widget class that is the "minimum" requirement.
PropertyList	d_properties
	The list of properties that this windowrenderer will be handling.

Friends
class	Window

Detailed Description

Base-class for the assignable WindowRenderer object.

Constructor & Destructor Documentation

CEGUI::WindowRenderer::WindowRenderer	(	const String &	name,
		const String &	class_name = "Window"
	)

Constructor.

Parameters

name	Factory type name
class_name	The name of a widget class that is to be the minimum requirement for this window renderer.

Member Function Documentation

void CEGUI::WindowRenderer::registerProperty ( Property *  property )

protected

Register a property class that will be properly managed by this window renderer.

Parameters

property

Pointer to a static Property object that will be added to the target window.

References d_properties.

Referenced by CEGUI::FalagardListHeader::FalagardListHeader(), CEGUI::FalagardProgressBar::FalagardProgressBar(), CEGUI::FalagardScrollbar::FalagardScrollbar(), CEGUI::FalagardSlider::FalagardSlider(), CEGUI::FalagardStatic::FalagardStatic(), CEGUI::FalagardStaticImage::FalagardStaticImage(), CEGUI::FalagardStaticText::FalagardStaticText(), and CEGUI::FalagardTabControl::FalagardTabControl().

virtual void CEGUI::WindowRenderer::render ( )

pure virtual

Populate render cache.

This method must be implemented by all window renderers and should perform the rendering operations needed for this widget. Normally using the Falagard API...

Implemented in CEGUI::FalagardStaticText, CEGUI::FalagardStatic, CEGUI::FalagardEditbox, CEGUI::FalagardMultiLineEditbox, CEGUI::FalagardMultiColumnList, CEGUI::FalagardStaticImage, CEGUI::FalagardProgressBar, CEGUI::FalagardListbox, CEGUI::FalagardSlider, CEGUI::FalagardScrollbar, CEGUI::FalagardTabControl, CEGUI::FalagardTree, CEGUI::FalagardFrameWindow, CEGUI::FalagardListHeader, CEGUI::FalagardMenuItem, CEGUI::FalagardItemEntry, CEGUI::FalagardListHeaderSegment, CEGUI::FalagardScrollablePane, CEGUI::FalagardMenubar, CEGUI::FalagardPopupMenu, CEGUI::FalagardTooltip, CEGUI::FalagardButton, CEGUI::FalagardItemListbox, CEGUI::FalagardTabButton, CEGUI::FalagardTitlebar, and CEGUI::FalagardDefault.

Referenced by CEGUI::Window::drawSelf().
