Static class for the FalagardBase module. More...

Inheritance diagram for CEGUI::FalagardStatic:

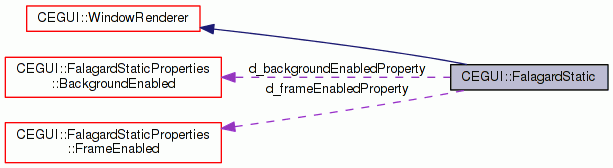

Collaboration diagram for CEGUI::FalagardStatic:

Public Member Functions
	FalagardStatic (const String &type)
	type name for this widget. More...

bool	isFrameEnabled (void) const
	Return whether the frame for this static widget is enabled or disabled. More...

bool	isBackgroundEnabled (void) const
	Return whether the background for this static widget is enabled to disabled. More...

void	setFrameEnabled (bool setting)
	Enable or disable rendering of the frame for this static widget. More...

void	setBackgroundEnabled (bool setting)
	Enable or disable rendering of the background for this static widget. More...

virtual void	render ()
	Populate render cache. More...

Public Member Functions inherited from CEGUI::WindowRenderer
	WindowRenderer (const String &name, const String &class_name="Window")
	Constructor. More...

virtual	~WindowRenderer ()
	Destructor.

const String &	getName () const
	Returns the factory type name of this window renderer.

Window *	getWindow () const
	Get the window this windowrenderer is attached to.

const String &	getClass () const
	Get the "minimum" Window class this renderer requires.

const WidgetLookFeel &	getLookNFeel () const
	Get the Look'N'Feel assigned to our window.

virtual Rect	getUnclippedInnerRect () const
	Get unclipped inner rectangle that our window should return from its member function with the same name.

virtual Rect	getPixelRect () const
	Get actual pixel rectangle our window is to return from its member function with the same name.

virtual void	performChildWindowLayout ()
	Method called to perform extended laying out of the window's attached child windows.

Static Public Attributes
static const utf8	TypeName [] = "Falagard/Static"

Protected Attributes
bool	d_frameEnabled
	True when the frame is enabled.

bool	d_backgroundEnabled
	true when the background is enabled.

Protected Attributes inherited from CEGUI::WindowRenderer
Window *	d_window
	Pointer to the window this windowrenderer is assigned to.

const String	d_name
	Name of the factory type used to create this window renderer.

const String	d_class
	Name of the widget class that is the "minimum" requirement.

PropertyList	d_properties
	The list of properties that this windowrenderer will be handling.

Static Protected Attributes
static FalagardStaticProperties::FrameEnabled	d_frameEnabledProperty

static FalagardStaticProperties::BackgroundEnabled	d_backgroundEnabledProperty

Additional Inherited Members
Protected Types inherited from CEGUI::WindowRenderer
typedef std::vector< Property * >	PropertyList

Protected Member Functions inherited from CEGUI::WindowRenderer
void	registerProperty (Property *property)
	Register a property class that will be properly managed by this window renderer. More...

virtual void	onAttach ()
	Handler called when this windowrenderer is attached to a window.

virtual void	onDetach ()
	Handler called when this windowrenderer is detached from its window.

virtual void	onLookNFeelAssigned ()
	Handler called when a Look'N'Feel is assigned to our window.

virtual void	onLookNFeelUnassigned ()
	Handler called when a Look'N'Feel is removed/unassigned from our window.

Detailed Description

Static class for the FalagardBase module.

This class requires LookNFeel to be assigned. The LookNFeel should provide the following:

States:

Enabled - basic rendering for enabled state.
Disabled - basic rendering for disabled state.
EnabledFrame - frame rendering for enabled state
DisabledFrame - frame rendering for disabled state.
WithFrameEnabledBackground - backdrop rendering for enabled state with frame enabled.
WithFrameDisabledBackground - backdrop rendering for disabled state with frame enabled.
NoFrameEnabledBackground - backdrop rendering for enabled state with frame disabled.
NoFrameDisabledBackground - backdrop rendering for disabled state with frame disabled.

Constructor & Destructor Documentation

CEGUI::FalagardStatic::FalagardStatic ( const String & type )

type name for this widget.

Constructor

References CEGUI::WindowRenderer::registerProperty().

Member Function Documentation

bool CEGUI::FalagardStatic::isBackgroundEnabled ( void ) const

inline

Return whether the background for this static widget is enabled to disabled.

Returns: true if the background is enabled and will be rendered. false if the background is disabled and will not be rendered.

Referenced by CEGUI::FalagardStaticProperties::BackgroundEnabled::get().

bool CEGUI::FalagardStatic::isFrameEnabled ( void ) const

inline

Return whether the frame for this static widget is enabled or disabled.

Returns: true if the frame is enabled and will be rendered. false is the frame is disabled and will not be rendered.

Referenced by CEGUI::FalagardStaticProperties::FrameEnabled::get().

void CEGUI::FalagardStatic::render ( )

virtual

Populate render cache.

This method must be implemented by all window renderers and should perform the rendering operations needed for this widget. Normally using the Falagard API...

Implements CEGUI::WindowRenderer.

Reimplemented in CEGUI::FalagardStaticText, and CEGUI::FalagardStaticImage.

References d_backgroundEnabled, d_frameEnabled, CEGUI::WindowRenderer::d_window, CEGUI::WindowRenderer::getLookNFeel(), CEGUI::WidgetLookFeel::getStateImagery(), CEGUI::Window::isDisabled(), and CEGUI::StateImagery::render().

Referenced by CEGUI::FalagardStaticImage::render(), and CEGUI::FalagardStaticText::render().

void CEGUI::FalagardStatic::setBackgroundEnabled ( bool setting )

Enable or disable rendering of the background for this static widget.

Parameters

setting true to enable rendering of the background. false to disable rendering of the background.

References d_backgroundEnabled, CEGUI::WindowRenderer::d_window, and CEGUI::Window::requestRedraw().

Referenced by CEGUI::FalagardStaticProperties::BackgroundEnabled::set().

void CEGUI::FalagardStatic::setFrameEnabled ( bool setting )

Enable or disable rendering of the frame for this static widget.
