CEGUI::FalagardStaticText Class Reference

StaticText class for the FalagardBase module. More...

Inheritance diagram for CEGUI::FalagardStaticText:

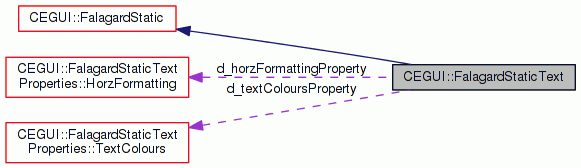

Collaboration diagram for CEGUI::FalagardStaticText:

Public Types
enum	HorzFormatting {   LeftAligned, RightAligned, HorzCentred, HorzJustified,   WordWrapLeftAligned, WordWrapRightAligned, WordWrapCentred, WordWrapJustified }
	Enumeration of horizontal formatting options for falagard static text widgets. More...
enum	VertFormatting { TopAligned, BottomAligned, VertCentred }
	Enumeration of vertical formatting options for a falagard static text widgets. More...

Public Member Functions
	FalagardStaticText (const String &type)
	Constructor.
ColourRect	getTextColours (void) const
	Return a ColourRect object containing the colours used when rendering this widget.
HorzFormatting	getHorizontalFormatting (void) const
	Return the current horizontal formatting option set for this widget.
VertFormatting	getVerticalFormatting (void) const
	Return the current vertical formatting option set for this widget.
void	setTextColours (const ColourRect &colours)
	Sets the colours to be applied when rendering the text.
void	setVerticalFormatting (VertFormatting v_fmt)
	Set the vertical formatting required for the text.
void	setHorizontalFormatting (HorzFormatting h_fmt)
	Set the horizontal formatting required for the text.
bool	isVerticalScrollbarEnabled (void) const
	Return whether the vertical scroll bar is set to be shown if needed.
bool	isHorizontalScrollbarEnabled (void) const
	Return whether the horizontal scroll bar is set to be shown if needed.
void	setVerticalScrollbarEnabled (bool setting)
	Set whether the vertical scroll bar will be shown if needed.
void	setHorizontalScrollbarEnabled (bool setting)
	Set whether the horizontal scroll bar will be shown if needed.
void	render (void)
	Populate render cache. More...
Public Member Functions inherited from CEGUI::FalagardStatic
	FalagardStatic (const String &type)
	type name for this widget. More...
bool	isFrameEnabled (void) const
	Return whether the frame for this static widget is enabled or disabled. More...
bool	isBackgroundEnabled (void) const
	Return whether the background for this static widget is enabled to disabled. More...
void	setFrameEnabled (bool setting)
	Enable or disable rendering of the frame for this static widget. More...
void	setBackgroundEnabled (bool setting)
	Enable or disable rendering of the background for this static widget. More...
Public Member Functions inherited from CEGUI::WindowRenderer
	WindowRenderer (const String &name, const String &class_name="Window")
	Constructor. More...
virtual	~WindowRenderer ()
	Destructor.
const String &	getName () const
	Returns the factory type name of this window renderer.
Window *	getWindow () const
	Get the window this windowrenderer is attached to.
const String &	getClass () const
	Get the "minimum" Window class this renderer requires.
const WidgetLookFeel &	getLookNFeel () const
	Get the Look'N'Feel assigned to our window.
virtual Rect	getUnclippedInnerRect () const
	Get unclipped inner rectangle that our window should return from its member function with the same name.
virtual Rect	getPixelRect () const
	Get actual pixel rectangle our window is to return from its member function with the same name.
virtual void	performChildWindowLayout ()
	Method called to perform extended laying out of the window's attached child windows.

Static Public Attributes
static const utf8	TypeName [] = "Falagard/StaticText"
	type name for this widget.
static const String	VertScrollbarNameSuffix
	Widget name suffix for the vertical scrollbar component.
static const String	HorzScrollbarNameSuffix
	Widget name suffix for the horizontal scrollbar component.
Static Public Attributes inherited from CEGUI::FalagardStatic
static const utf8	TypeName [] = "Falagard/Static"

Protected Types
typedef std::vector < Event::Connection >	ConnectionList

Protected Member Functions
void	onLookNFeelAssigned ()
	Handler called when a Look'N'Feel is assigned to our window.
void	onLookNFeelUnassigned ()
	Handler called when a Look'N'Feel is removed/unassigned from our window.
void	renderScrolledText (void)
void	configureScrollbars (void)
Scrollbar *	getVertScrollbar (void) const
Scrollbar *	getHorzScrollbar (void) const
Rect	getTextRenderArea (void) const
Size	getDocumentSize (const Rect &renderArea) const
bool	onTextChanged (const EventArgs &e)
bool	onSized (const EventArgs &e)
bool	onFontChanged (const EventArgs &e)
bool	onMouseWheel (const EventArgs &e)
bool	handleScrollbarChange (const EventArgs &e)

Protected Attributes
HorzFormatting	d_horzFormatting
	Horizontal formatting to be applied to the text.
VertFormatting	d_vertFormatting
	Vertical formatting to be applied to the text.
ColourRect	d_textCols
	Colours used when rendering the text.
bool	d_enableVertScrollbar
	true if vertical scroll bar is enabled.
bool	d_enableHorzScrollbar
	true if horizontal scroll bar is enabled.
ConnectionList	d_connections
Protected Attributes inherited from CEGUI::FalagardStatic
bool	d_frameEnabled
	True when the frame is enabled.
bool	d_backgroundEnabled
	true when the background is enabled.
Protected Attributes inherited from CEGUI::WindowRenderer
Window *	d_window
	Pointer to the window this windowrenderer is assigned to.
const String	d_name
	Name of the factory type used to create this window renderer.
const String	d_class
	Name of the widget class that is the "minimum" requirement.
PropertyList	d_properties
	The list of properties that this windowrenderer will be handling.

Static Protected Attributes
static FalagardStaticTextProperties::TextColours	d_textColoursProperty
static FalagardStaticTextProperties::VertFormatting	d_vertFormattingProperty
static FalagardStaticTextProperties::HorzFormatting	d_horzFormattingProperty
static FalagardStaticTextProperties::VertScrollbar	d_vertScrollbarProperty
static FalagardStaticTextProperties::HorzScrollbar	d_horzScrollbarProperty
Static Protected Attributes inherited from CEGUI::FalagardStatic
static FalagardStaticProperties::FrameEnabled	d_frameEnabledProperty
static FalagardStaticProperties::BackgroundEnabled	d_backgroundEnabledProperty

Detailed Description

StaticText class for the FalagardBase module.

This class requires LookNFeel to be assigned. The LookNFeel should provide the following:

States:

• Enabled - basic rendering for enabled state.
• Disabled - basic rendering for disabled state.
• EnabledFrame - frame rendering for enabled state
• DisabledFrame - frame rendering for disabled state.
• WithFrameEnabledBackground - backdrop rendering for enabled state with frame enabled.
• WithFrameDisabledBackground - backdrop rendering for disabled state with frame enabled.
• NoFrameEnabledBackground - backdrop rendering for enabled state with frame disabled.
• NoFrameDisabledBackground - backdrop rendering for disabled state with frame disabled.

Named Areas (missing areas will default to 'WithFrameTextRenderArea'): WithFrameTextRenderArea WithFrameTextRenderAreaHScroll WithFrameTextRenderAreaVScroll WithFrameTextRenderAreaHVScroll NoFrameTextRenderArea NoFrameTextRenderAreaHScroll NoFrameTextRenderAreaVScroll NoFrameTextRenderAreaHVScroll

Member Enumeration Documentation

enum CEGUI::FalagardStaticText::HorzFormatting

Enumeration of horizontal formatting options for falagard static text widgets.

Enumerator
LeftAligned	Text is output as a single line of text with the first character aligned with the left edge of the widget.
RightAligned	Text is output as a single line of text with the last character aligned with the right edge of the widget.
HorzCentred	Text is output as a single line of text horizontally centred within the widget.
HorzJustified	Text is output as a single line of text with the first and last characters aligned with the edges of the widget.
WordWrapLeftAligned	Text is output as multiple word-wrapped lines of text with the first character of each line aligned with the left edge of the widget.
WordWrapRightAligned	Text is output as multiple word-wrapped lines of text with the last character of each line aligned with the right edge of the widget.
WordWrapCentred	Text is output as multiple word-wrapped lines of text with each line horizontally centered within the widget.
WordWrapJustified	Text is output as multiple word-wrapped lines of text with the first and last characters of each line aligned with the edges of the widget.

enum CEGUI::FalagardStaticText::VertFormatting

Enumeration of vertical formatting options for a falagard static text widgets.

Enumerator
TopAligned	Text is output with the top of first line of text aligned with the top edge of the widget.
BottomAligned	Text is output with the bottom of last line of text aligned with the bottom edge of the widget.
VertCentred	Text is output vertically centred within the widget.

Member Function Documentation

void CEGUI::FalagardStaticText::render ( void  )

virtual

Populate render cache.

This method must be implemented by all window renderers and should perform the rendering operations needed for this widget. Normally using the Falagard API...

Reimplemented from CEGUI::FalagardStatic.

References CEGUI::FalagardStatic::render().
